Published on April 15, 2016
The air powered car is also called as a low pollution or zero pollution cars. Since the car runs on compressed air it is environmentally friendly. Air powered cars runs on compressed air instead of gasoline. This car is powered by a two cylinder compressed engine. This engine can run either on compressed air alone or act as an IC engine.
Compressed air is stored in glass or fiber tanks at a pressure of 4351 psi. Within the next two years, you could see the first air-powered vehicle motoring through your town. Most likely, it will be the e.Volution car that is being built by Zero Pollution Motors . The cars have generated a lot of interest in recent years, and the Mexican government has already signed a deal to buy 40,000 e.Volutions to replace gasoline- and diesel-powered taxis in the heavily polluted Mexico City.
The following is the technology description of the actual functionality of the motor. A more detailed explanation can be found in U.S. patent no: 6,334,435

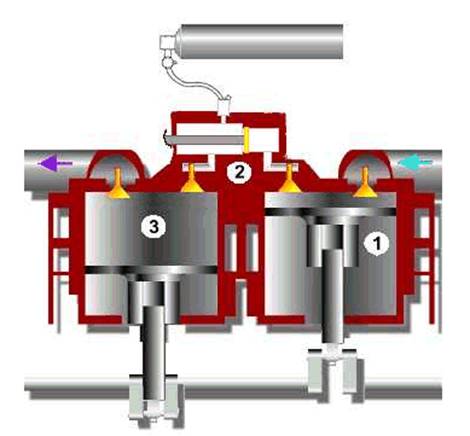

The first piston takes in ambient air and compresses it to approximately 300 psi and 200*f in the compression chamber during the first cycle of the engine.
When the piston pause, a small amount of compressed air from the tanks is released into the expansion chamber to create a low pressured, low temperature volume of about 140psi
Shortly before the valve to the exhaust cylinder is opened, a high-speed shutter connects the compression and expansion chambers. The sudden pressure and temperature difference between the low chambers creates pressure waves in the expansion chamber, thereby producing work in the exhaust chamber that drives the piston to power the engine.
The air tanks for storing the compressed air are localized underneath the vehicle. They are constructed of reinforced carbon fiber with a thermoplastic liner. Each tank can hold 3,180 ft 3 of air at a pressure of up to 4,300 psi. When connected to a special compressor station, the tanks can be recharged within 3-4 minutes. They can also be recharged using the on-board compressor 3-4 hours after connecting to a standard power outlet.
These new vehicles incorporate various innovative and novel systems such as storing energy in the form of compressed air, using new materials such as fiberglass to build the car and vegetable oil for the motor lubrication.
Numerous innovations have been integrated in the engine design. As an example, there is a patented system of articulated conrods that allow the piston to pause at top dead center. The following graph indicates this movement of the piston in relation to the driving shaft rotation.
The car engine runs on compressed air and incorporates the three laws of thermodynamics.
• The first law states that energy can neither be destroyed nor be wasted.
• The second law describes the disorder within substances.
• The third law defines that only in crystals at 0 o k, there is absolute disorder.
The car incorporates these laws of thermodynamics in the following way. First, the pressure that is created within on-board tanks during compression is in direct proportion to the energy that has been stored in it. This process is equivalent to the energy stored in a wire spring when it is compressed.
Furthermore, thermal energy is dissipating from the system, thereby lowering the temperature of a compressed gas volume that expands. This process is equivalent to harnessing energy that has been stored.
In turning the shaft, shock waves similar to supersonic waves are created when two gases with very different characteristics are mixed together in a certain fashion. All these effects result in a high-powered air technology.
Air powered cars run on compressed air instead of gasoline. Since the car is working on air there is no pollution. A two cylinder, compressed air engine, powers the car. The engine can run either on compressed air alone or act as an internal combustion engine. Compressed air is stored in fiber or glass fiber tanks at a pressure of 4351 pounds per square inch. The air is fed through an air injector to the engine and flows into a small chamber, which expands the air. The air pushing down on the piston moves the crankshaft, which gives the vehicle power.
This car is also working on a hybrid version of their engine that can run on hybrid version of their engine that can run on traditional fuel in combination with air. The change of energy source is controlled electronically. When the car is moving at speeds below 60kph,it runs on air. At higher speeds, it runs on a fuel such as gasoline diesel or natural gas.
Air tanks fixed to the underside of the vehicle can hold about 79 gallons (300 litres) of air. This compressed air can fuel the car upto 200km at a top speed of 96.5kph.When the tank nears empty it can be refilled at the nearest air pump. The car motors require a small amount of oil about 0.8 litres worth that have to change just every 50,000km.
