Published on Nov 30, 2023

Abstract

The pedaling dress washing machine is a new innovative concept is mainly used to save power. In this concept we have designed a pedal washing machine. It is used to washing the cloth without using electric power. Now days washing the cloths are very easy by using the electric power systems like washing machine but these machines are very costly which is only using by the rich people. Instead of that we have design the pedal dress washing machine for the poor people to make their work easy

METHODOLOGY:

The below items are using in this project;

• Rack and pinion

• Washing shaft

• Drum

• Pedaling arrangement

WORKING PRINCIPLE:

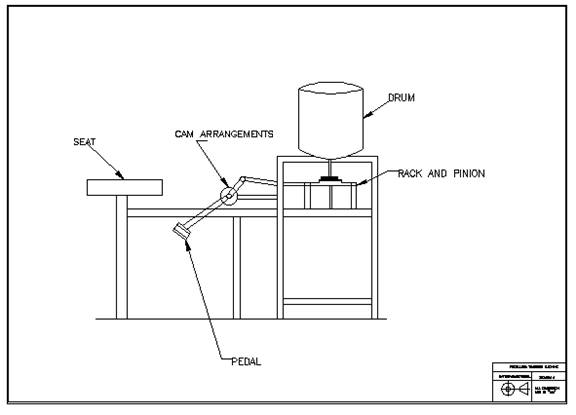

Pedaling Dress Washing Machine

In this concept we have design the pedal dress washing machine with simple mechanism for washing cloths with the help of pedaling operation. It also consists of one more advantage, the pedaling operation just acts like an exercise to the human being. It is easy to operate, also working principle of the machine is very simple.

Just put down the cloths in to the cylinder and add required water in to the cylinder. Start to pedal the pedaling system. When pedaling system starts to rotate it will rotate the washing blades by using the rack and pinion arrangements.

The shaft is welded with the pinion which is fixed on the cylinder. The rack and pinion arrangement will gives the forward and reverse direction rotation for the operation of washing cloths
