What is TPM 2.0 Chip Motherboard:

The TPM 2.0 Chip Motherboard in Your Computer is what it sounds like. Learn how to resolve the Windows 11 TPM 2.0 Module Error that occurs during the installation, update, or upgrade of Windows 10 or an earlier version. Microsoft officially launched Windows 11 on June 24th, according to the company.

|amp|

This new version of Windows has been anticipated for a long time and is packed with a slew of interesting features and visually appealing graphics. Immediately following the announcement, it was embraced and admired all across the world. In this section, we’ll go through how to enable TPM on Intel and AMD Ryzen processors through the BIOS settings.

Now, everyone from a computer enthusiast to an ordinary Windows user wants to instal Windows 11 on their PC or laptop, and this is where things get complicated. Actually, as part of the Windows 11 minimum requirements, an advanced type security module is necessary for this new edition of the operating system.

The TPM (Trusted Platform Module) is the name given to this security module. Because of the absence of this module, the PC Health Check App displays the error message “This PC is unable to run Windows 11” while attempting to determine compatibility.

This problem has now become a source of frustration for all Microsoft WIN 11 enthusiasts across the world. If you are one of the customers who has been worried by the TPM 2.0 Chip issue on their Motherboard, then stop worrying and read the solution provided in this article.

What exactly is the TPM Chip?

In order to answer the first question, let us first define the term Trusted Platform Module (TPM) in the simplest possible way. TPM is a cryptographic module that performs cryptographic functions such as the creation of cryptographic keys and the storage of those keys in an isolated module on the PC Motherboard. These cryptographic keys are kept separate and separate from other parts of the computer in the processor so that they do not leave the computer but can still perform authorization functions in the computer such as file encryption, drive encryption, and other cryptographic authentications or functions.

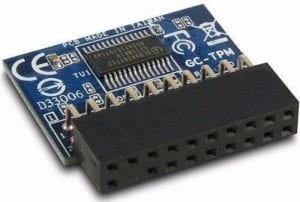

TPM Chip

TPM Modules are classified according to their type

Firmware Trusted Platform Modules (fTPM) and Discrete Trusted Platform Modules (dTPM) are the two primary types of TPM modules (dTPM). Discrete TPMs are a type of hardwar-based module that contains a specialised chip for performing TPM functions. There is a special slot on the motherboard named “TPM” that is used to connect in a dTPM chip. This dTPM chip may be either a 20-pin or a 14-pin device.

Firmware TPMs, as the name implies, are firmware-based TPM systems, similar to UEFI. When it operates on a CPU, it does so in a trusted execution environment. Intel refers to this functionality as ‘Platform Trest Technology (PTT),’ while AMD refers to it as fTPM, which stands for Platform Security Processor (platform security processor) (PSP).

In addition, TPM is available in two versions: TPM 1.2 and TPM 2.0, none of which is backward compatible with the other. So, once we’ve determined the type of Trusted Platform Module, we may choose one of the available solutions to resolve the TPM problem.

How to verify the status of your TPM in your PC

It is simple to determine whether the Trusted Platform Module TPM Module Version is currently enabled or disabled on a PC. The following are the steps to check the status of TPM 2.0 on Windows 11:

1. Alternatively, you can just hit the Window Key and R at the same time to bring up the start menu and then the “run” option.

2. Now, in the run box, write “tpm.msc” and then press the “ok” button.

3. If you receive the message “The TPM is ready to use,” you are set to go; the TPM is now activated on your machine. In addition, if the TPM is not available or is deactivated, the error message “compatible TPM cannot be found” will appear.

How to resolve the TPM 2.0 Windows 11 problem on Intel processors

On the PC, it can be noticed that Intel has integrated a security technology called TPP, which provides a TPM Chip environment similar to that of a laptop. To enable TPM 2.0 Windows 11 on an Intel-based machine using the BIOS, perform the steps outlined below:

1. Restart the computer in order to gain access to the BIOS settings.

2. In BIOS, we must locate and enable the TPP function. TPP is most likely to locate it under the part titled “Advanced PCH-FW Configuration.”

To verify that the TPP has been enabled on the system, save the settings and then check the status of the TPM.

How to resolve the Windows 11 TPM problem on AMD processors

To download and activate TPM 2.0 on an AMD PC through the BIOS, follow the steps outlined below.

1. Restarting the machine is required to acquire access to the BIOS settings once more.

2. Once the BIOS settings have been accessed, navigate to the Peripherals tab/section.

You will find AMD CPU fTPM in this section, which must be enabled. That’s all there is to do; save your changes and restart your computer to verify the TPM status.

Download and instal Microsoft Windows 11 TPM 2.0 to resolve an error.

A Hardware-Based Solution for the dTPM Method

If the fTPM module is not accessible on your system, you will need to opt for a hardware-based solution instead. As a result, in this scenario, we must first look for a slot labelled “TPM” on the motherboard. It is located near the Front USB Pin Connector on the board’s bottom edge, close to the edge of the board’s bottom border.

The TMP version theatre v1.2 or 2.0 must be identified when the Connector has been located and verified. Version 1.2 is now considered obsolete, and it is only seldom encountered on boards made prior to 2014.

You may find out what version you have by reading the manual, or by looking up the motherboard’s model number and seeing the full specifications. However, keep in mind that, due to a lack of backward compatibility, you will not be able to utilise a TPM 2.0 module on a TPM 1.2 connection version. Also, make sure the connector pin size is either 20-pin or 14-pin to ensure it is compatible.

After you have figured out all of these details, you can purchase a TPM Module from the market. One final point to mention is that this hardware may be company-specific, which means that even after matching all of the criteria, something like an Asus TPM Module may not work on a Gigabyte board. As a result, it is recommended that you validate it with the manufacturer.
